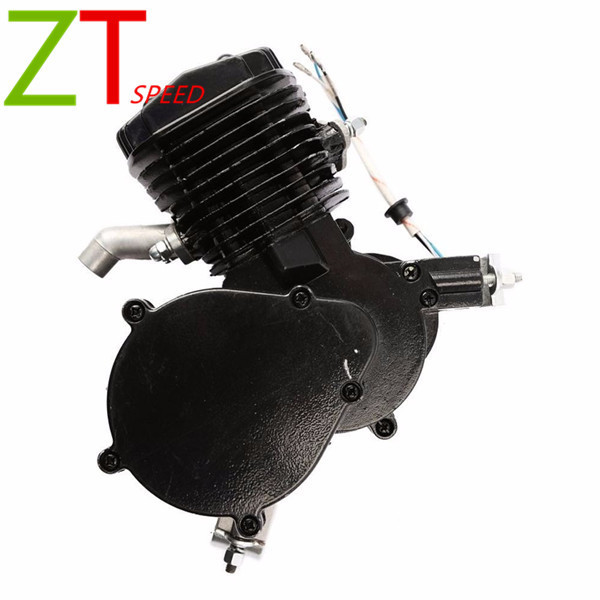

2 stroke 80cc black color engine kit
2 stroke 80cc black color engine kit
- 产品详情
- 产品参数
Product Description
| Model | 50cc(48cc) | 60cc | 80cc(66cc) |
| Engine type | single cylinder, air-cooling, two strokes gasoline engine | ||
Bore & stroke | 40mmx38mm | 45mmx38mm | 47mmx38mm |
Ignition Mode | CDI Ignition | CDI Ignition | CDI Ignition |
Max. Power | 1.68kw/6000r/min | 1.86kw/6000r/min | 2.2kw/6000r/min |
Compression ratio | 6:1 | 6:1 | 6:1 |
Transmission ratio | 18:1 | 18:1 | 18:1 |
Starting | Kick starting | Kick starting | Kick starting |
| Lubricating oil | Two-stroke machine oil (or 10W/40, 10W/30 machine oil) | ||
| Mixing ratio of fuel and engine oil | 16:1 for new sets, 20:1 after running 500km | ||
| Sparking plug | Z4C 16MM | ||
Tank capacity | 2L | 2L | 2L |
Fuel consumption | 3L/100km | 3.5L/100km | 4L/100km |
Clutch type | Rub bloc drying | Rub bloc drying | Rub bloc drying |
Cooling | Air-cooling | Air-cooling | Air-cooling |
Shifting way | sprocket | sprocket | sprocket |
Max.speed | 30km/h | 35km/h | 38km/h |
Max. Load capacity | 120kg | 150kg | 180kg |
Fuel Type | 90# | 90# | 90# |
Net weight | 10.5kg | 10.8kg | 11kg |
Gross weight | 11.5kg | 11.8kg | 12kg |
Ctn size 0.03m³ | 42×42×17CM | 42×42×17CM | 42×42×17CM |
20'GP | 1200pcs | 1200pcs | 1200pcs |
Package included
| 1 × | Spark Plug |
| 1 × | Chain Guard |
| 1 × | Chrome Muffler |
| 1 × | Drive Chain Idler |
| 1 × | Push Clutch Lever |
| 1 × | Standard Bike Chain |
| 1 × | 80CC 2-Stroke Engine |
| 1 × | CD Ignition Assembly |
| 1 × | High Quality Main Bearings |
| 1 × | Black Teardrop Gas Tank (2L) |
| 1 × | Low Profile Carburetor Assembly |
| 1 × | Magneto With Kill Switch (on throttle) |
| 1 × | 44 Tooth Chrome Sprocket With 9 Holes |
| 1 × | Twist Throttle And Cable With Matching Grip |
| 1 × | All the needed mounting brackets, gaskets, and hardware |
|
